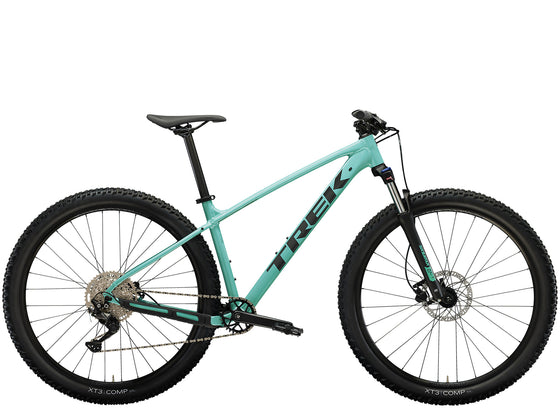

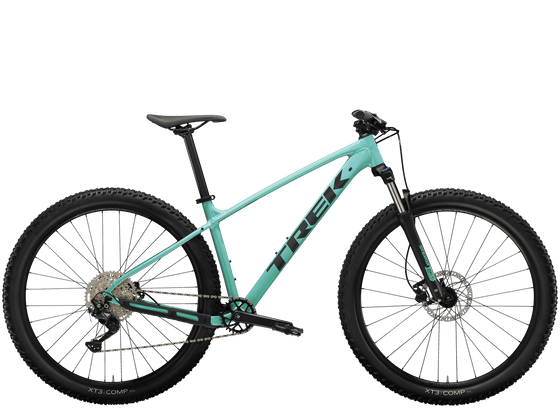

Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.
You want a trail bike that's dialed for building confidence on the dirt, and versatile enough for commuting to work or school.
A lightweight aluminum frame with modern trail riding geometry and internal routing that keeps cables protected and keep the bike looking sleek. A front suspension fork that cushions rocks, roots, and bumps in the trail, 10-speed fuss-free Shimano Deore shifting, and the serious stopping power of hydraulic disc brakes.
Marlin 6 is an ideal trail bike for riders who want to progress on the trail, and want a bike that can keep them rolling off of the trail, too.
*Please note - spec applies to all sizes unless listed separately
| *Frame |
Size: XXS , XS Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |
|---|---|
|
Size: S , M , ML , L , XL , XXL Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |
|

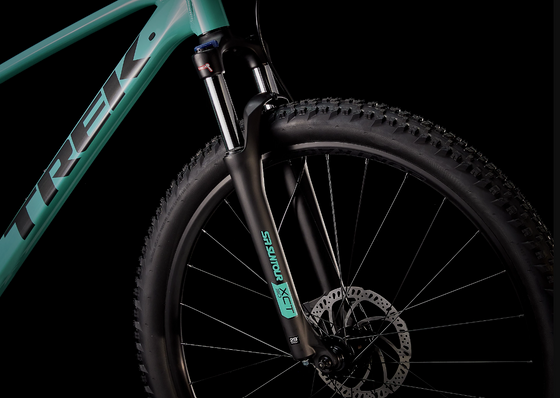

| *Fork |
Size: XXS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 26'' wheel, 100mm QR, 100mm travel |
|
Size: XS , S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel |
|
|
Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel |
|
| Max compatible fork travel | 120mm, XXS: 80mm |
| Hub front | Formula DC-20, alloy, 6-bolt, 100mm ThruSkew |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Skewer rear | Bontrager Switch thru axle |
| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |
| Spokes | 14g stainless steel |
| *Tire |
Size: XXS Bontrager XT3 Comp, wire bead, 30 tpi, 26x2.35'' |
|
Size: XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40'' |
|
|
Size: M , ML , L , XL , XXL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40'' |
|
| Max tire size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
| Shifter | Shimano Deore M4100, 10 speed |
|---|---|

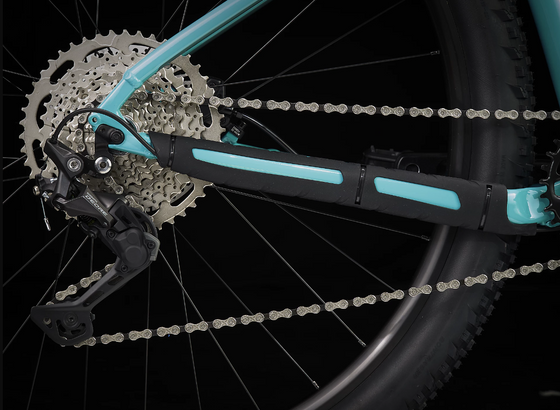

| Rear derailleur | Shimano Deore M5120, long cage |

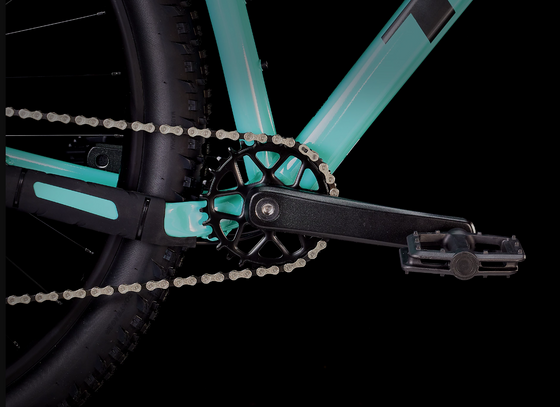

| *Crank |
Size: XXS Prowheel C10Y-NW, 30T steel narrow-wide ring, 160mm length |
|
Size: XS , S , M , ML , L , XL , XXL Prowheel C10Y-NW, 30T steel narrow-wide ring, 170mm length |
|
| Bottom bracket | VP BC73, 73mm, threaded cartridge |
| Cassette | Shimano Deore M4100, 11-46, 10 speed |
| Chain | KMC X10, 10 speed |
| Pedal | VP-536 nylon platform |
| Max chainring size | 1x: 34T, 2x: 36/22 |
| Saddle | Bontrager Arvada, steel rails, 138mm width |
|---|---|
| *Seatpost |
Size: XXS Bontrager alloy, 31.6mm, 12mm offset, 300mm length |
|
Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
|
|
Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|
| *Handlebar |
Size: XXS , XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
|
Size: S Bontrager alloy, 31.8mm, 15mm rise, 720mm width |
|
|
Size: M , ML , L , XL , XXL Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
|
| Grips | Bontrager XR Endurance Comp, lock-on |
| *Stem |
Size: XXS , XS , S Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length |
|
Size: M , ML , L Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length |
|
|
Size: XL Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length |
|
|
Size: XXL Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length |
|
| Headset | Semi-integrated, 1-1/8'' |

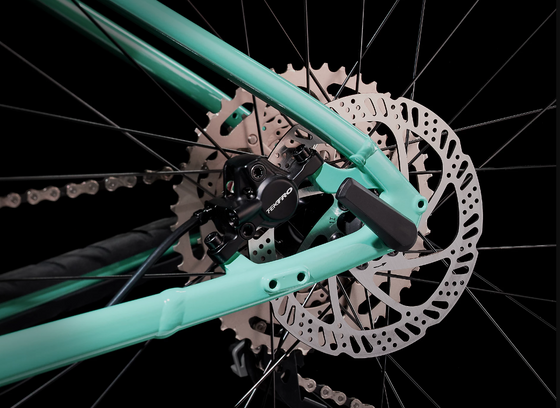

| Brake | Tektro HD-M275 hydraulic disc |
| Brake Set | Tektro HD-M275 hydraulic disc, 160mm rotor |
| Rotor size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
| Weight | M - 14.80 kg / 32.63 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
