PRODUCT DETAILS

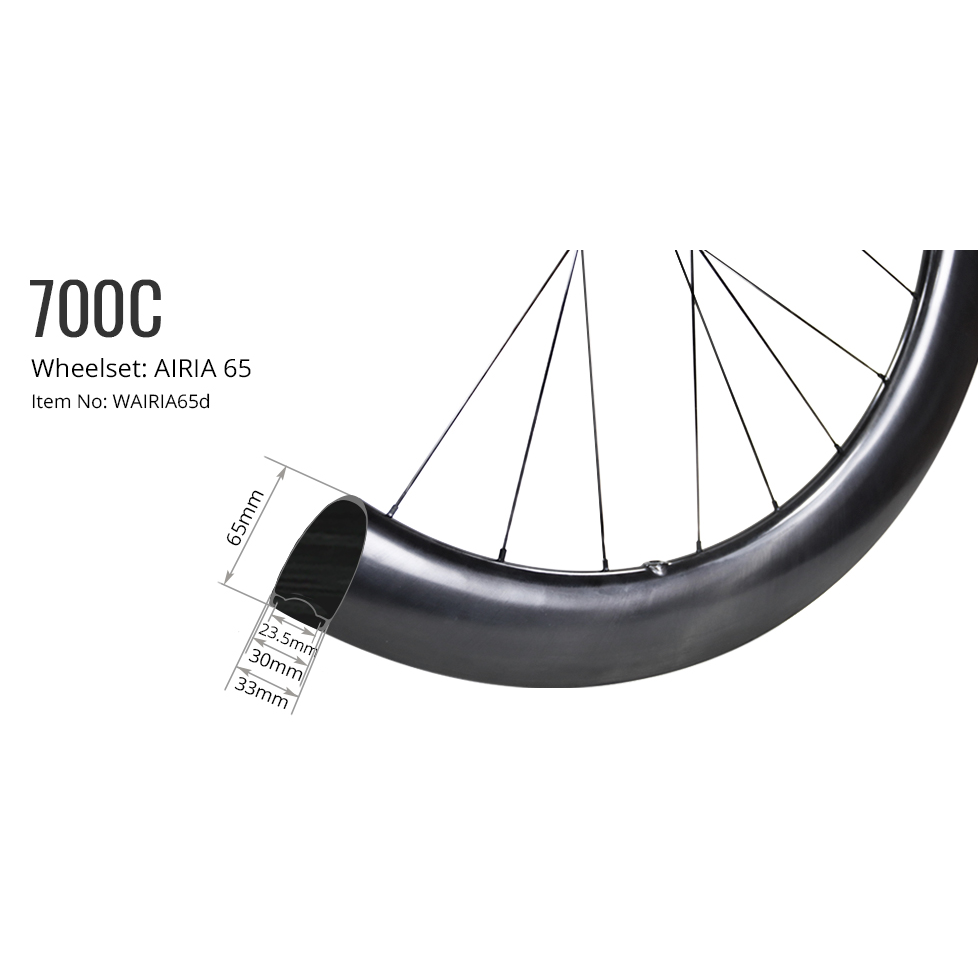

The Airia 65 disc is a high performance road racing and aero wheelset with the superb lightweight and its 65mm deep profile. Through innovative layup design, advanced manufacturing techniques, and premium materials, the Airia series achieves exceptional lightweight performance without sacrificing strength. The product inner width (23.5mm) suits the current mainstream 28C and 30C road tires, which basically complies with the 105% rule of thumb and reduces the aero drag.
Paired with lightweight hubs and spokes, the wheelset reaches a perfect balance of lightweight and strength. The Airia series features refined spoke hole technique, allowing for greater flexibility in spoke alignment at the rim. It promises a more precise fit with most hubs on the market. The 24H version is for steel spokes and we also have the 20H version for carbon spoke build.
The rim/wheelset has passed our in-house R&D impact test of 90J(UCI standard 40J).
Front Wheel
Rim: Airia65d Flyweight Hook UD Paintless Disc 20H With Drain Holes With Access Holes
Hub: Light Bicycle Speed-Hub Gen3 Plus Black 12/100mm straight pull Center lock 20H TPI Ceramic
Spoke: Thrust-4 Carbon T-Head(for Gen3) Black straight pull
Nipple: LB design Aluminum Black (for carbon spokes only) Universal External
ERD: 507.8mm (not including nipple head dimension)
Driver Side
Spoke Length: 266mm
Lacing Pattern: 2 cross
Non-Drive Side
Spoke Length: 264mm
Lacing Pattern: 2 cross
Spoke Tension: 120-130kgf
Rear Wheel
Rim: Airia65d Flyweight Hook UD Paintless Disc 20H With Drain Holes With Access Holes
Hub: Light Bicycle Speed-Hub Gen3 Plus Black 12/142mm straight pull Center lock 20H TPI Ceramic 36T Shimano Road 11s
Spoke: Thrust-4 Carbon T-Head(for Gen3) Black straight pull
Nipple: LB design Aluminum Black (for carbon spokes only) Universal External
ERD: 507.8mm (not including nipple head dimension)
Dishing Pattern: Centered (Traditional)
Driver Side
Spoke Length: 265mm
Lacing Pattern: 2 cross
Spoke Tension: 120-130kgf
Non-Drive Side
Spoke Length: 266mm
Lacing Pattern: 2 cross
