IsoSpeed smooth
IsoSpeed takes the edge off body-beating small bumps and trail chatter so you can stay stronger longer, without giving up any pedaling efficiency.
PRODUCT DETAILS

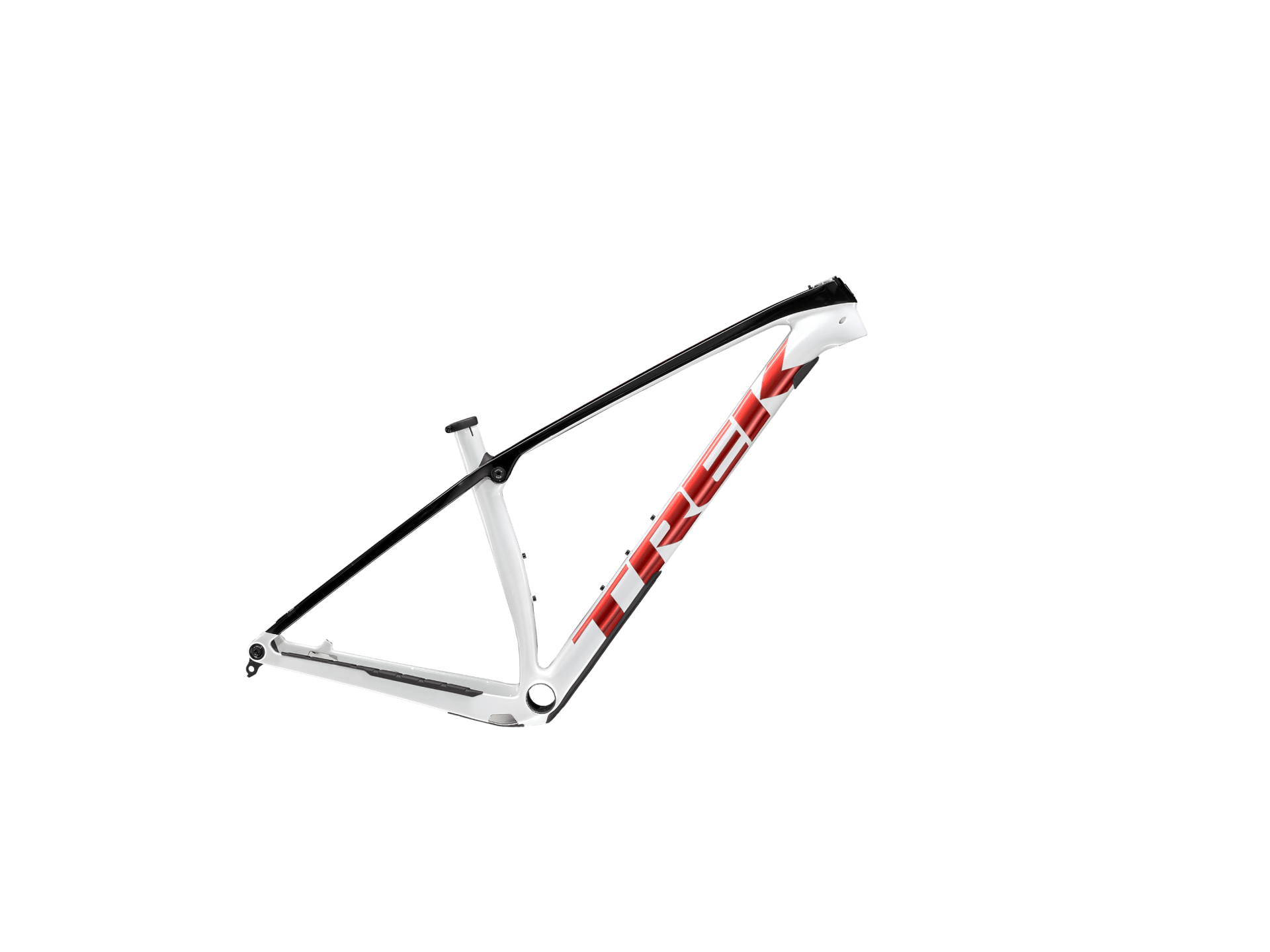

Procaliber frameset is a race-worthy carbon cross country mountain bike frame that's light, fast, and built to win. It has the unique advantage of IsoSpeed, a decoupler at the top tube/seat tube junction that gives you more compliance on rough trails for a smoother, faster ride.
OCLV Mountain Carbon
Trek's mountain-specific carbon fiber is tougher carbon, with unique materials and layup procedures, Trek's advanced engineering, and a higher standard of testing.
Straight Shot downtube
Straight Shot downtube gives you an extra-stiff frame without adding any weight, so you can stick your line through the rough stuff and still fly up the next climb.
| Frame | OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post mount brake, Boost148 |
|---|---|
| Max compatible fork travel | 120mm (533mm axle-to-crown) |
Wheels

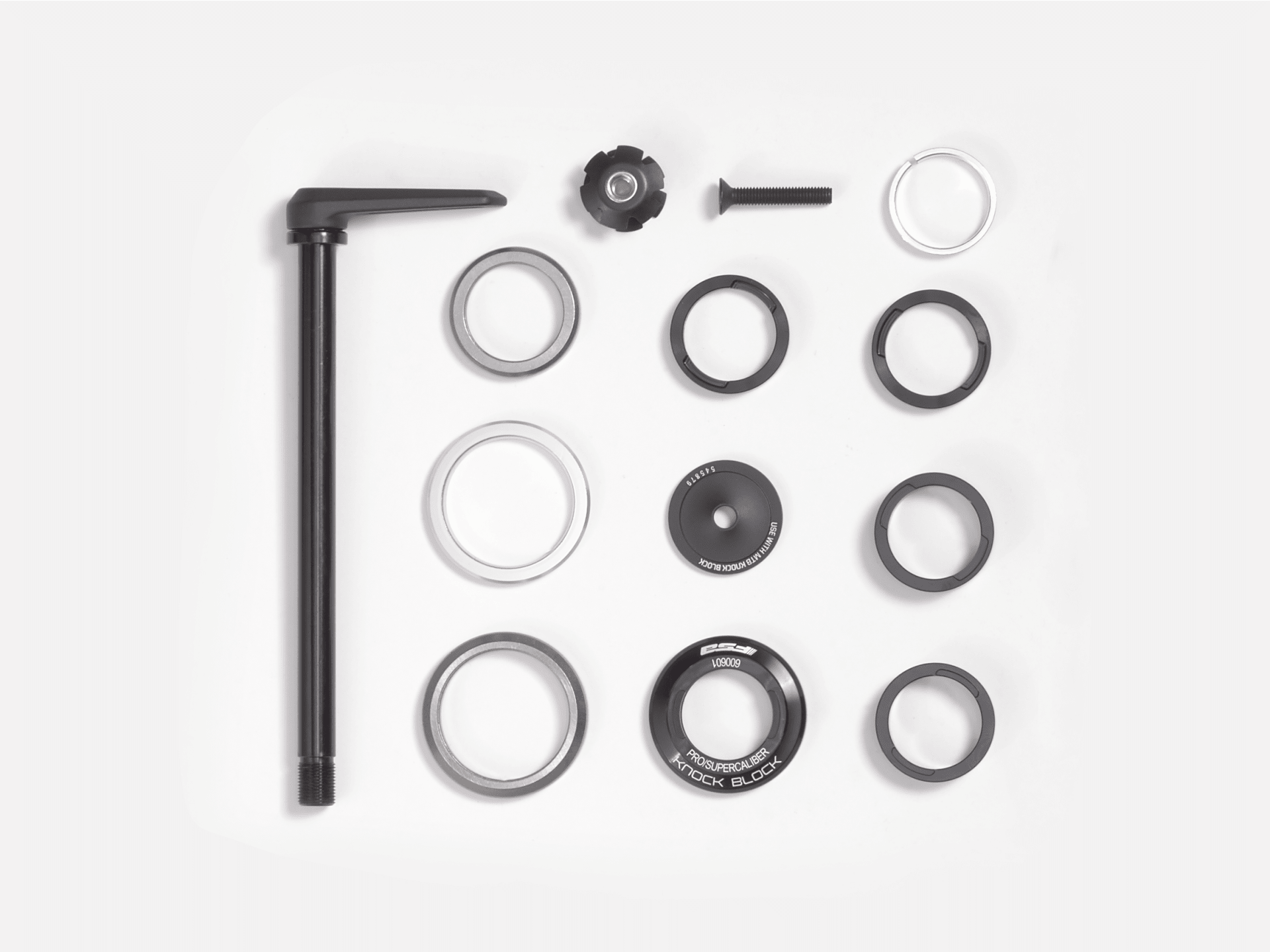

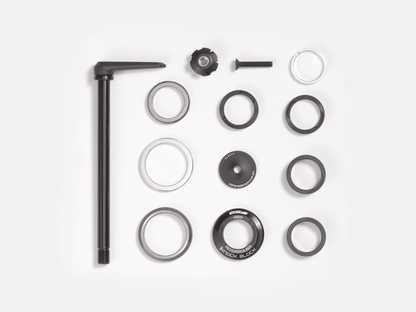

| Skewer rear | Bontrager Switch thru axle, removable lever |
|---|---|
| Max tire size | 29x2.40" |
Drivetrain
| Max chainring size | 1x: 36T, min 30T |
|---|
Components
| Headset | Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom |
|---|---|
| Rotor size | Max brake rotor sizes - Frame: 180mm, Fork: see fork manufacturer |
Weight
| Weight | M - 1.35 kg / 2.98 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
SIZING
| Size | Rider Height | Inseam |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165 - 176 cm 5'5" - 5'9" |
79 - 83 cm 31" - 33" |
| ML |
173 - 180 cm 5'8" - 5'11" |
81 - 86 cm 32" - 34" |
| L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
| 2XL |
195 - 203 cm 6'5" - 6'8" |
91 - 97 cm 36" - 38" |
