TREK

TREK - MADONE SL 5 GEN 8

Name: TREK - MADONE SL 5 GEN 8
Brand: TREK
SKU: 5319896
Price: 219000.0 PHP
Availability: InStock

₱219,000.00 PHP

Sale Sold out

COLOR BLACK

SIZE XS SMALL MEDIUM MED/LRG

Product variants

For orders or inquiries, please contact us. (Viber Number: 0917 566 8730)

Visit WhatsApp

Quantity

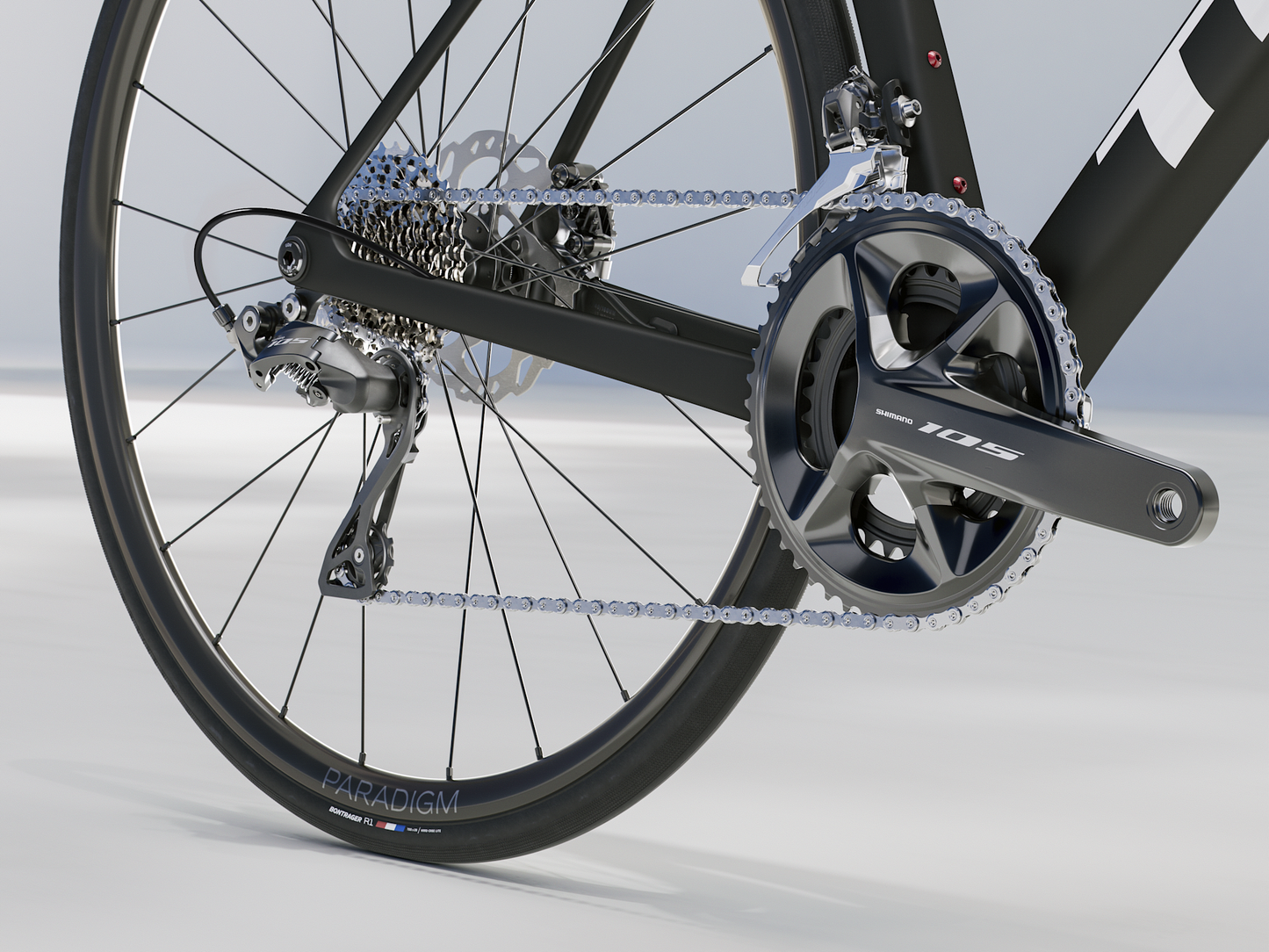

Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon layup and two-piece cockpit with hidden cable routing. It's built to race, with geometry that keeps you quick on the sprints yet in control on fast descents. A Shimano 105 groupset keeps the price down while still delivering clean mechanical shifting you can trust.

SPECS

*Please note - spec applies to all sizes unless listed separately

Frameset

Frame	500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
Fork	Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Wheels

Hub front	Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front	Bontrager Switch chamfered thru axle, removable lever
Hub rear	Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
*Skewer rear	Size: XS, S, M, ML, L, XL Bontrager Switch chamfered thru axle, removeable lever
*Skewer rear	Size: XS, S, M, ML, L, XL Bontrager Switch chamfered thru axle, removable lever
Rim	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes	14g stainless steel, black
Tire	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28mm
Max tire size	32mm (as measured, see manual for details)

Drivetrain

Shifter	Shimano 105 R7120, 12 speed
Front derailleur	Shimano 105 R7100, braze-on, down swing
Rear derailleur	Shimano 105 R7100, 36T max cog
*Crank	Size: XS, S Shimano 105 R7100, 50/34, 165mm length
	Size: M Shimano 105 R7100, 50/34, 170mm length
	Size: ML, L Shimano 105 R7100, 50/34, 172.5mm length
	Size: XL Shimano 105 R7100, 50/34, 175mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano 105 7101, 11-34, 12 speed
Chain	Shimano SLX M7100, 12 speed
Max chainring size	1x: 54T, 2x: 56/43

Components

*Saddle	Size: XS, S Bontrager Aeolus Comp, steel rails, 155mm width
	Size: XS, S, M, ML, L, XL Verse Short, steel rails, 145mm width
	Size: M, ML, L, XL Bontrager Aeolus Comp, steel rails, 145mm width
*Seatpost	Size: XS, S, M, XL Madone aero carbon seatpost, 0mm offset, short length
*Seatpost	Size: ML, L Madone aero carbon seatpost, 0mm offset, long length
*Handlebar	Size: XS Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
	Size: S, M Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
	Size: ML, L Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
	Size: XL Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Handlebar tape	Trek EcoTack, black
*Stem	Size: XS Trek RCS Pro, -7 degree, 80mm length
	Size: S, M Trek RCS Pro, -7 degree, 90mm length
	Size: ML, L Trek RCS Pro, -7 degree, 100mm length
	Size: XL Trek RCS Pro, -7 degree, 110mm length
Brake rotor	Shimano RT70, centerlock, 160mm
Rotor size	Max brake rotor sizes: 180mm front, 160mm rear

Weight

Weight	ML - 8.70 kg / 19.19 lbs (with tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.

SIZING

How tall are you?

To measure your height, stand straight up, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inseam?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inseam measurement. Your inseam is very important to your final bike size so please measure carefully.

size-table
Size	Rider Height	Inseam
XS	143 - 158 cm 4'8" - 5'2"	67 - 74 cm 26" - 29"
S	158 - 162 cm 5'2" - 5'4"	74 - 76 cm 29" - 30"
M	162 - 173 cm 5'4" - 5'8"	76 - 81 cm 30" - 32"
ML	173 - 179 cm 5'8" - 5'10"	81 - 84 cm 32" - 33"
L	179 - 188 cm 5'10" - 6'2"	84 - 88 cm 33" - 35"
XL	188 - 213 cm 6'2" - 7'0"	88 - 100 cm 35" - 39"

View full details
