TREK

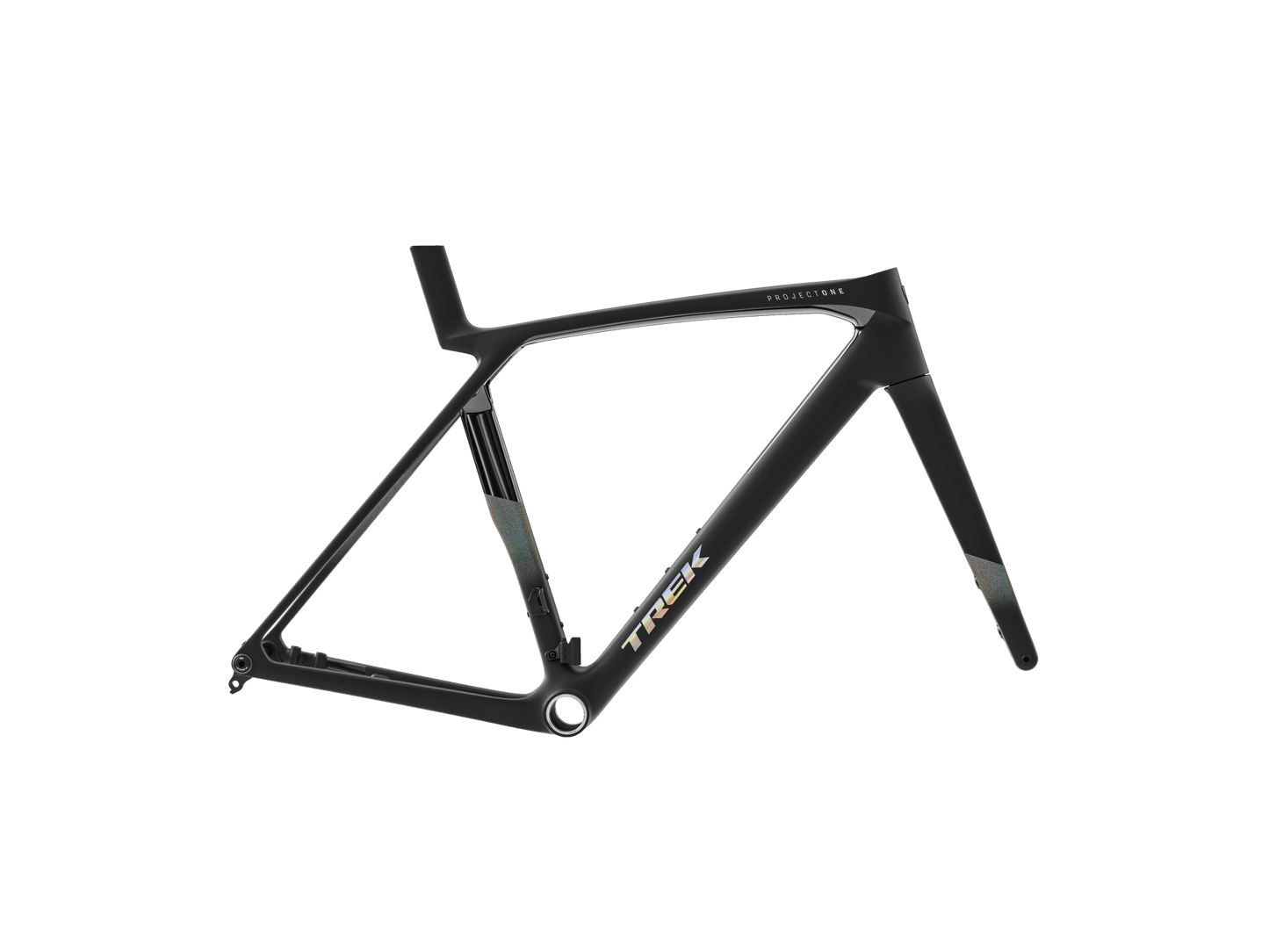

MADONE SLR DISC F/S - GEN 8

MADONE SLR DISC F/S - GEN 8

Regular price ₱290,000.00 PHP
Regular price Sale price ₱290,000.00 PHP
Sale Sold out
Color
Size

Madone SLR Gen 8 Frameset is ready for your dream build and the top step of the podium. It's crafted with our highest-level 900 Series OCLV Carbon that's not only insanely light, but also delivers free speed with aerodynamic shapes for cutting through wind. Plus, IsoFlow frame technology adds comfort on long rides without sacrificing speed or aerodynamics.

*Please note - spec applies to all sizes unless listed separately

Frameset
Frame 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
Fork Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Wheels
Skewer front Bontrager Switch chamfered thru axle, removable lever
Skewer rear Bontrager Switch chamfered thru axle, removable lever
Max tire size 32mm (as measured, see manual for details)
Drivetrain
Max chainring size 1x: 54T, 2x: 56/43
Components
Rotor size Max brake rotor sizes: 180mm front, 160mm rear
Weight
Weight 796g - ML (frame-only, painted)
350g (fork-only, painted)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.

SIZING

How tall are you?

To measure your height, stand straight up, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inseam?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inseam measurement. Your inseam is very important to your final bike size so please measure carefully.

size-table
Size Rider Height Inseam
XS

143 - 158 cm

4'8" - 5'2"

67 - 74 cm

26" - 29"

S

158 - 162 cm

5'2" - 5'4"

74 - 76 cm

29" - 30"

M

162 - 173 cm

5'4" - 5'8"

76 - 81 cm

30" - 32"

ML

173 - 179 cm

5'8" - 5'10"

81 - 84 cm

32" - 33"

L

179 - 188 cm

5'10" - 6'2"

84 - 88 cm

33" - 35"

XL

188 - 213 cm

6'2" - 7'0"

88 - 100 cm

35" - 39"
