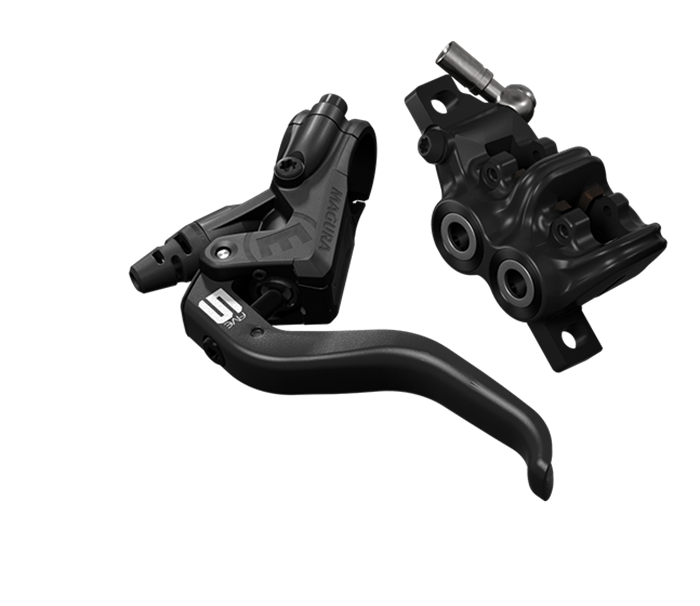

MAGURA MT5N single brake 2-finger L/R 2200mm incl. accessories (1pc)

MAGURA MT5N single brake 2-finger L/R 2200mm incl. accessories (1pc)


MT5 – Award-winning introduction to the Gravity segment

 The price-performance wonder in the gravity segment:

The MT5 offers excellent braking performance at an unbeatable price.

Whether in bike parks, in enduro use or on the home trail – the MT5 is up to all challenges.


The radial design of the brake master ensures low friction, reducing transmission losses.

It also enables the conversion of (small/large) transmission ratios, which improves modulation and control.


Braking performance doesn’t have to be expensive:

With the MT5 you save money and still get the performance you need.

The 4-piston brake calliper forged in one piece has a high degree of rigidity, resulting in

  • outstanding braking force and
  • the best possible modulation.



  • Scope of Use Gravity, Enduro, E-MTB
  • Weight 255 g
  • Master Material: Carbotecture, Flip-Flop-Design
  • Lever Blade 2-Finger HC, Aluminium
  • Hydraulic Yes
  • Brake Fluid Royal Blood (mineral oil based)
  • EBT (Easy Bleed Technology) Yes
  • Bite Adjust No
  • Reach Adjust Yes, Torx T25
  • Banjo Fitting Yes
  • Pistons 4
  • Tubing MAGURA Disctube
  • Shift Mix Yes (optional)
  • Remote Mix Yes (optional)
  • Recommended Rotor Storm HC, MDR-C, MDR-P
  • eBike Switch No
  • Mounting PM/IS
  • Colors Black (Master), Black (Caliper)
  • Retrofit Accessories (opt.) 1-Finger HC lever 1-Finger HC Loic Bruni 2-Finger lever 3-Finger ball-end 4-Finger lever
