TREK
TREK - PROCALIBER 9.5
TREK - PROCALIBER 9.5
Regular price
₱135,000.00 PHP
Regular price
Sale price
₱135,000.00 PHP
Unit price
/
per

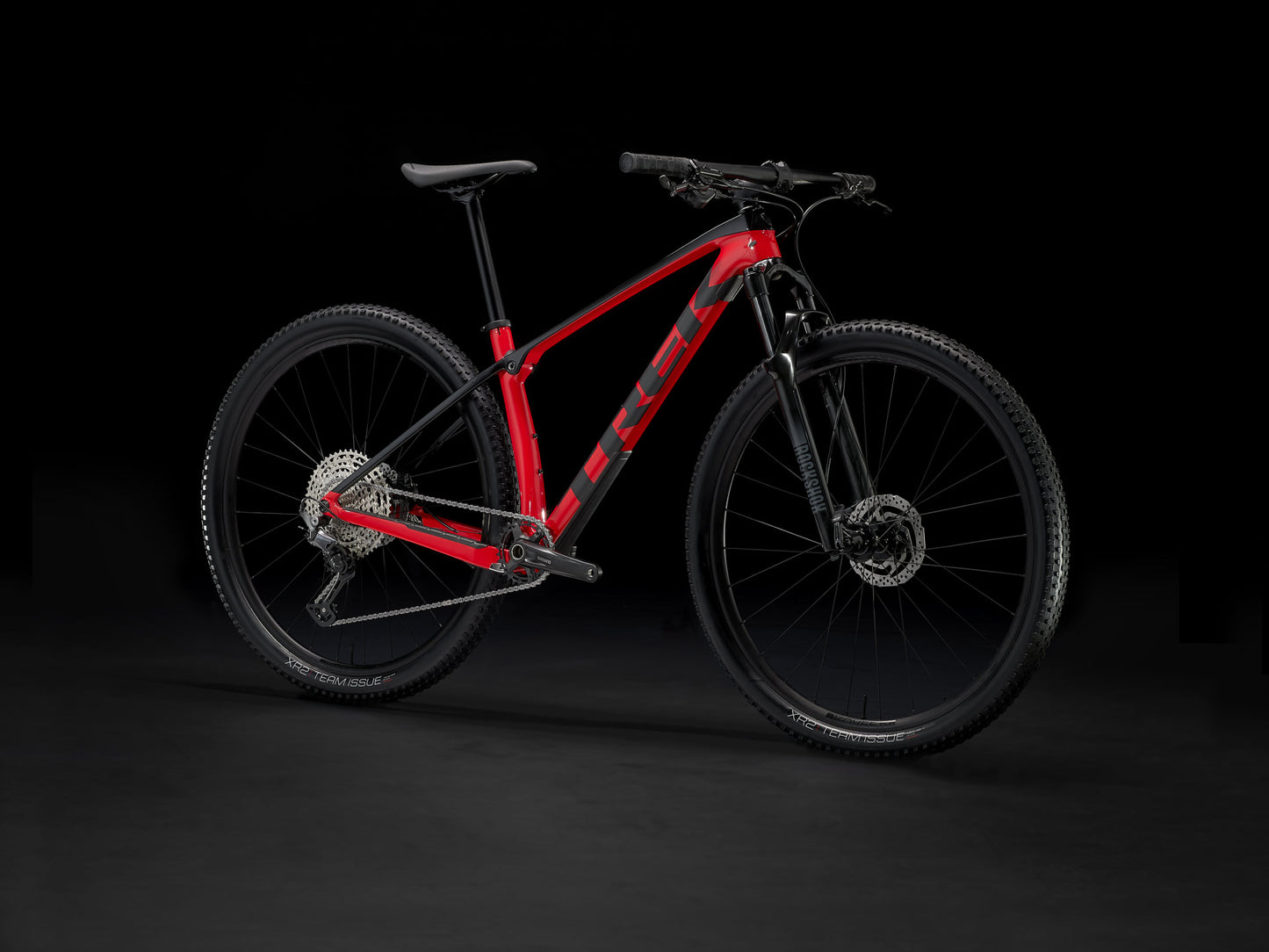

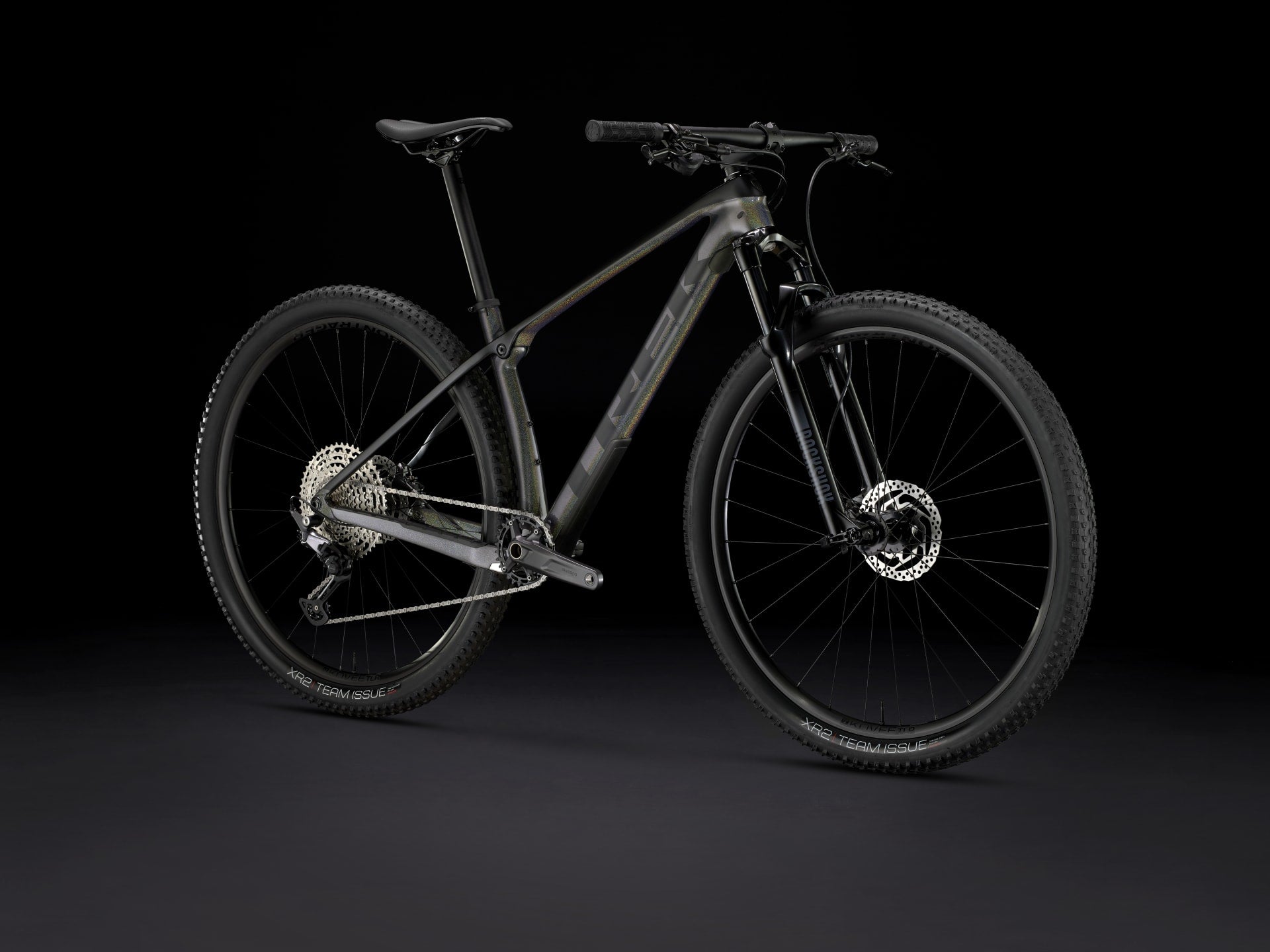

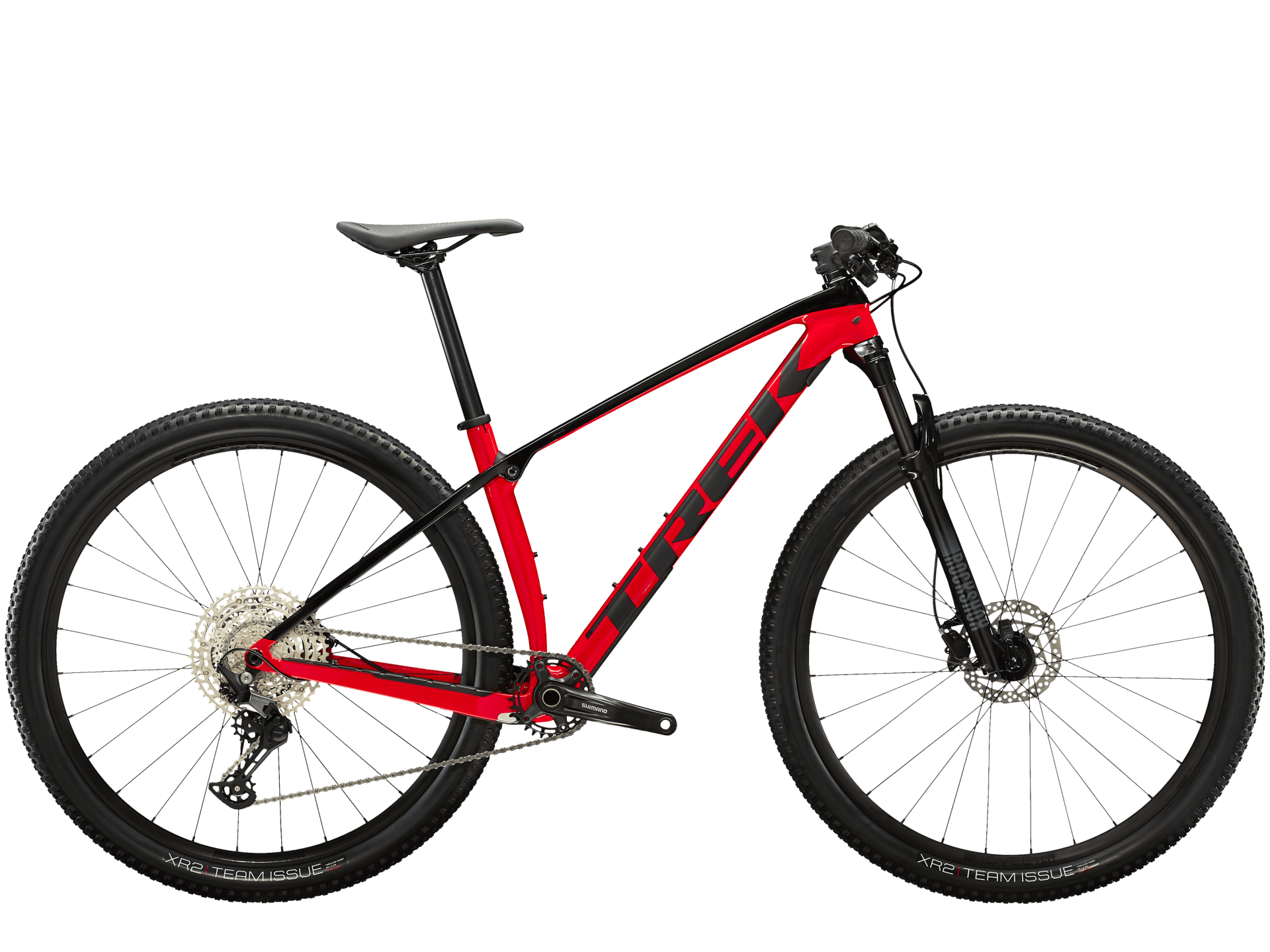

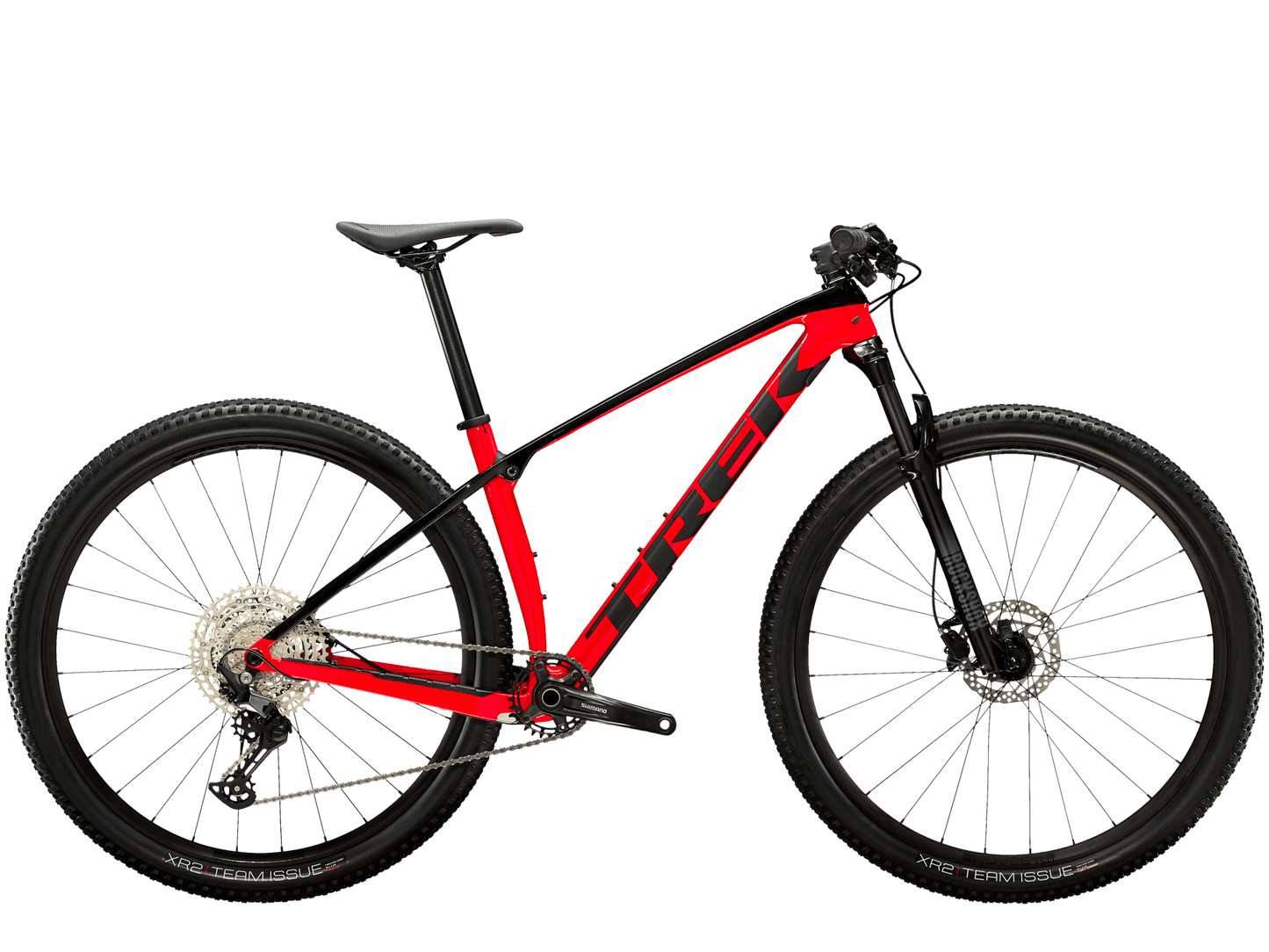

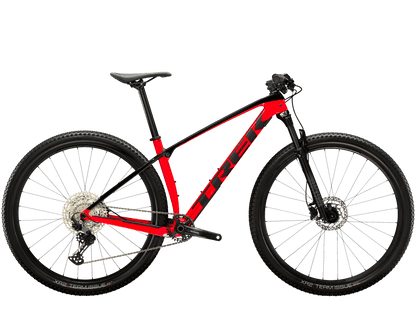

Procaliber 9.5 is a lightweight carbon hardtail with the unique advantage of our trail-smoothing IsoSpeed decoupler. It's the most affordable carbon model in the Procaliber mountain bike family, and it's built for speed and efficiency on singletrack with a wide-range Shimano Deore 1x12 drivetrain, RockShox Judy SL fork, and speedy 29er wheels.
*Please note - spec applies to all sizes unless listed separately
Frameset

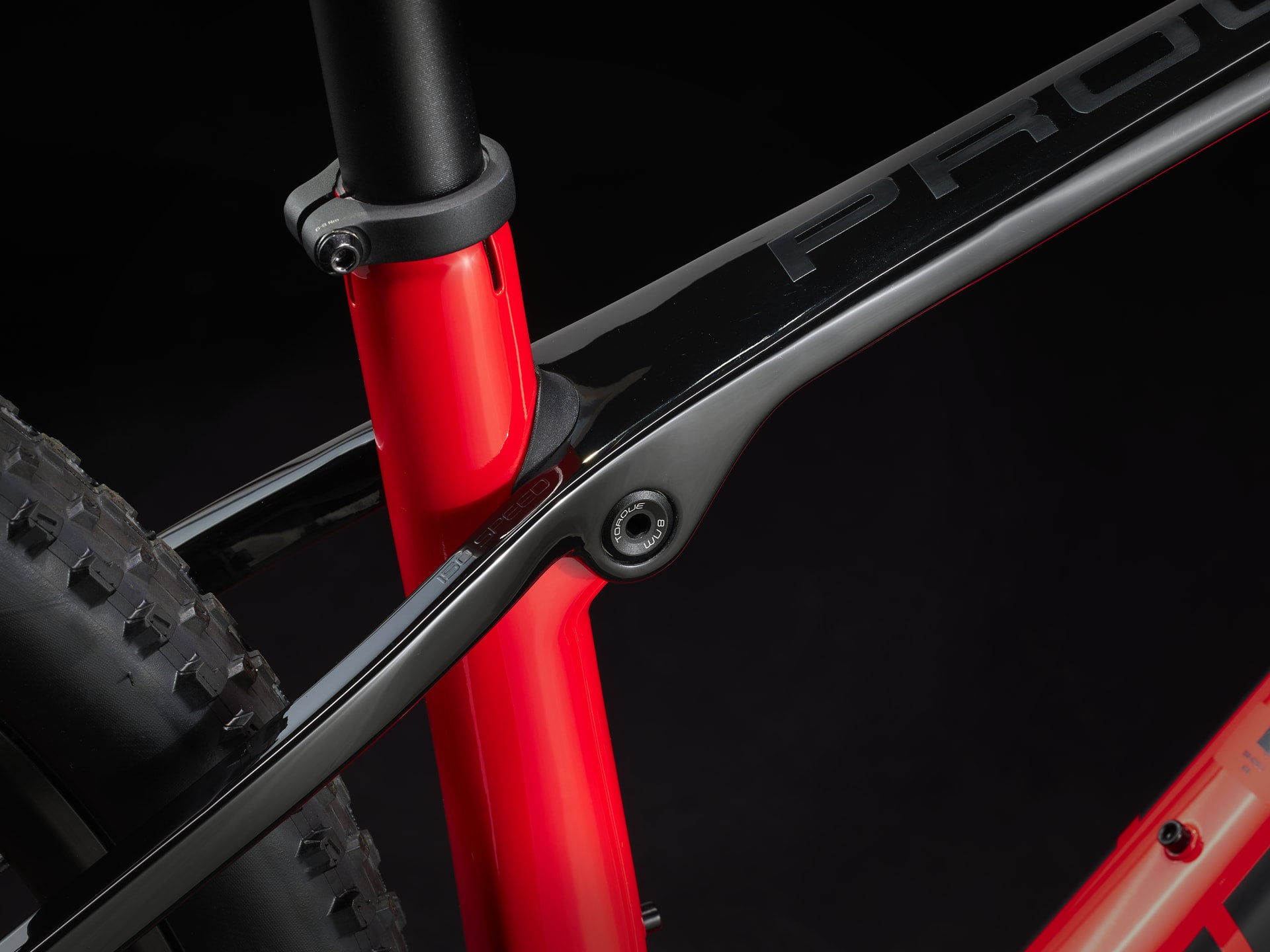

| Frame | OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post mount brake, Boost148 |
|---|---|
| Fork | RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 100mm travel |
| Max compatible fork travel | 120mm (533mm axle-to-crown) |
Wheels
| Wheel front | Bontrager Kovee TLR rim/DC-611 Boost hub, 28H, 15 Gauge Spokes, Black/Black, 29'' |
|---|---|
| Wheel rear | Bontrager Kovee TLR rim/MST148A Boost hub, 29'', 28H, 15 Gauge Spokes, Micro Spline Freehub, Black rim graphics, spokes, and nipples |
| Hub front | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |
| *Tire |

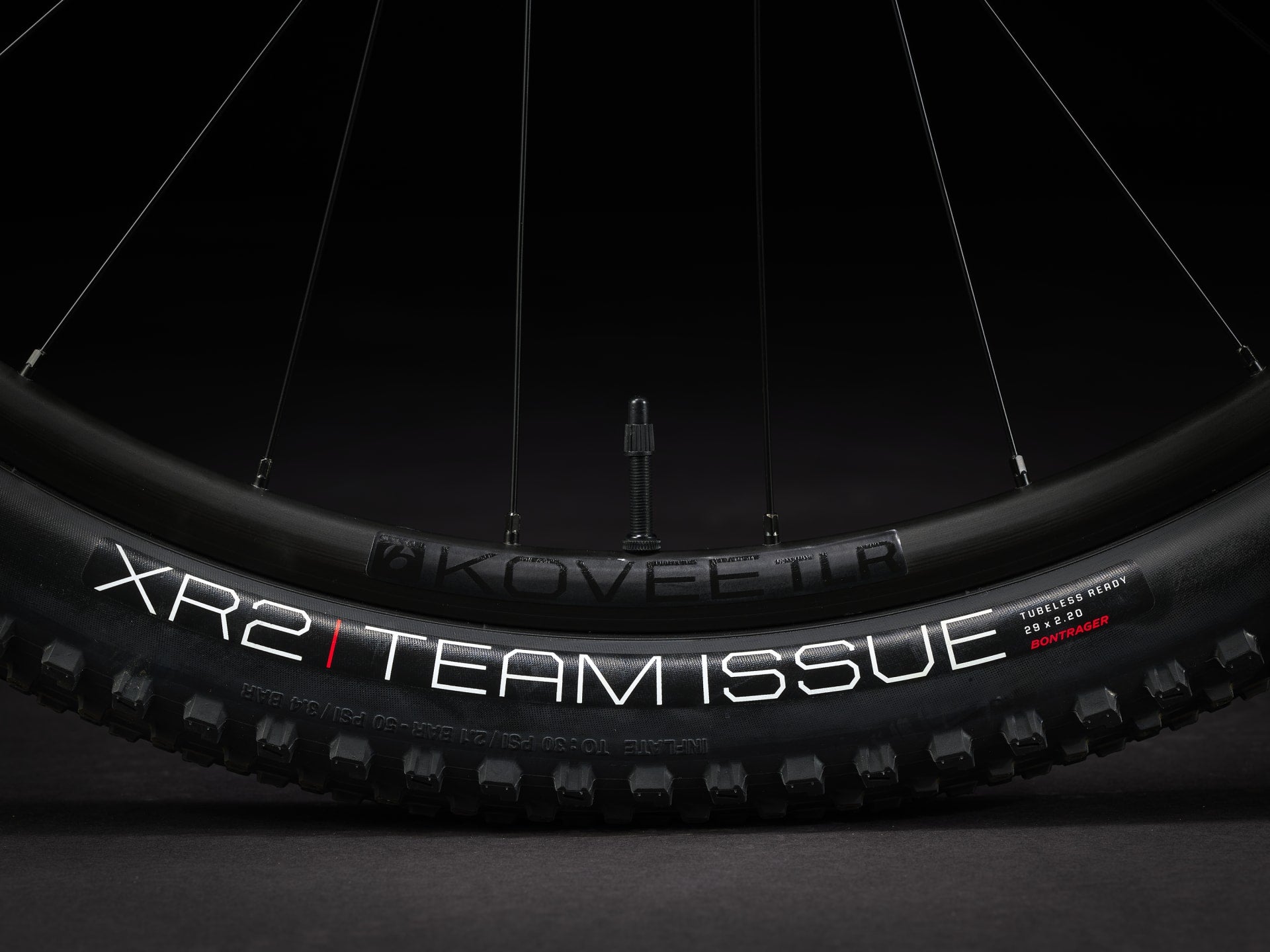

Size: S, M, ML, L, XL Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20'' |
|
Size: S, M, ML, L, XL Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20'' |
|
| Tire part | Bontrager TLR sealant, 6oz |
| Rim strip | Bontrager TLR |
| Max tire size | Frame: 29x2.40", Fork: See manufacturer |
Drivetrain
| Shifter | Shimano Deore M6100, 12 speed |
|---|---|

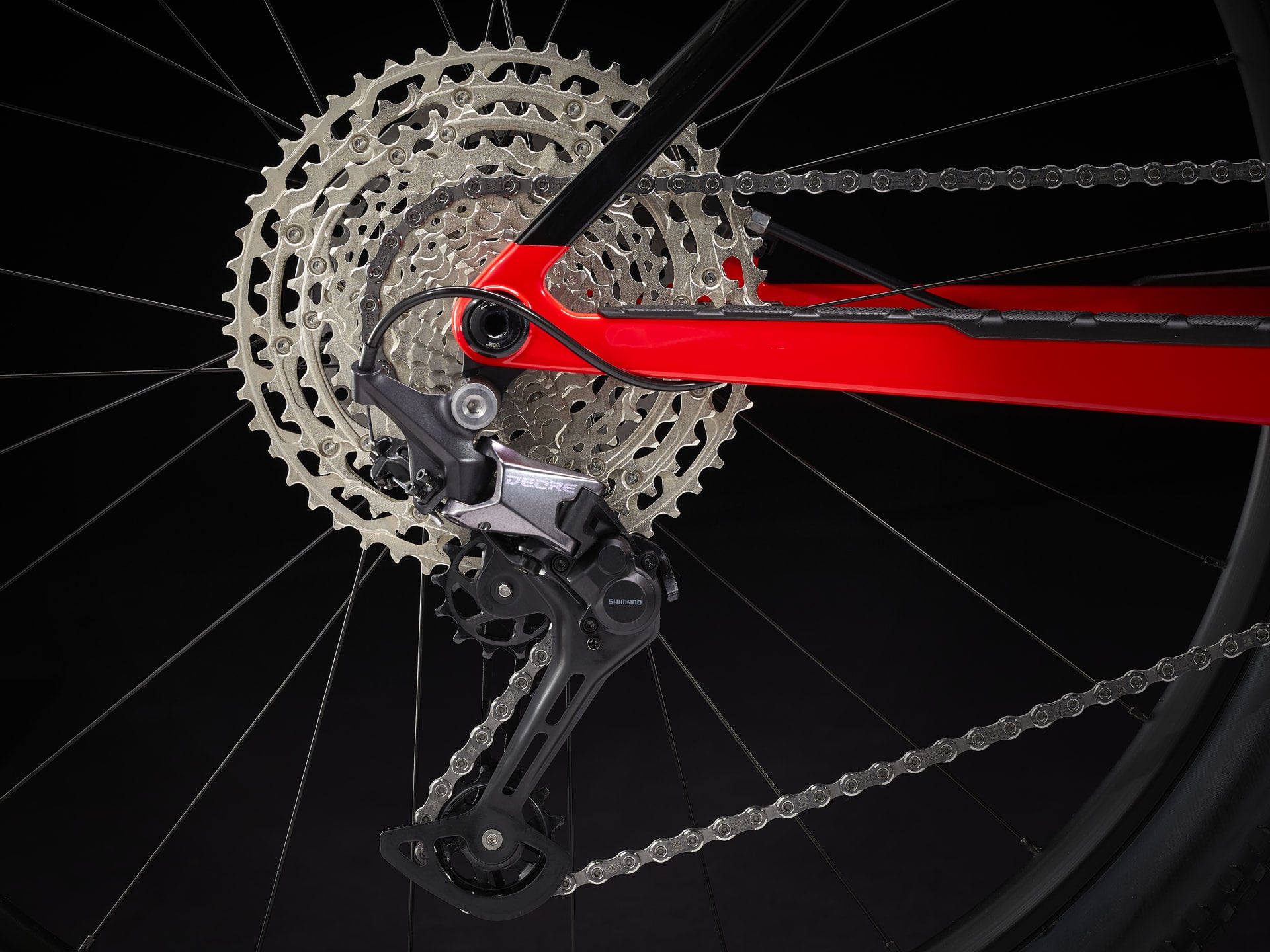

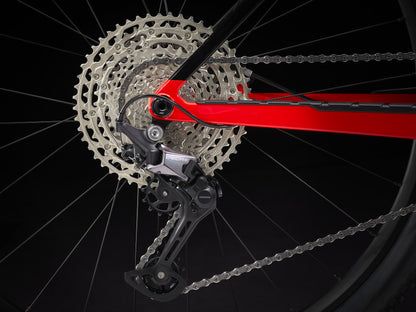

| Rear derailleur | Shimano Deore M6100, long cage |

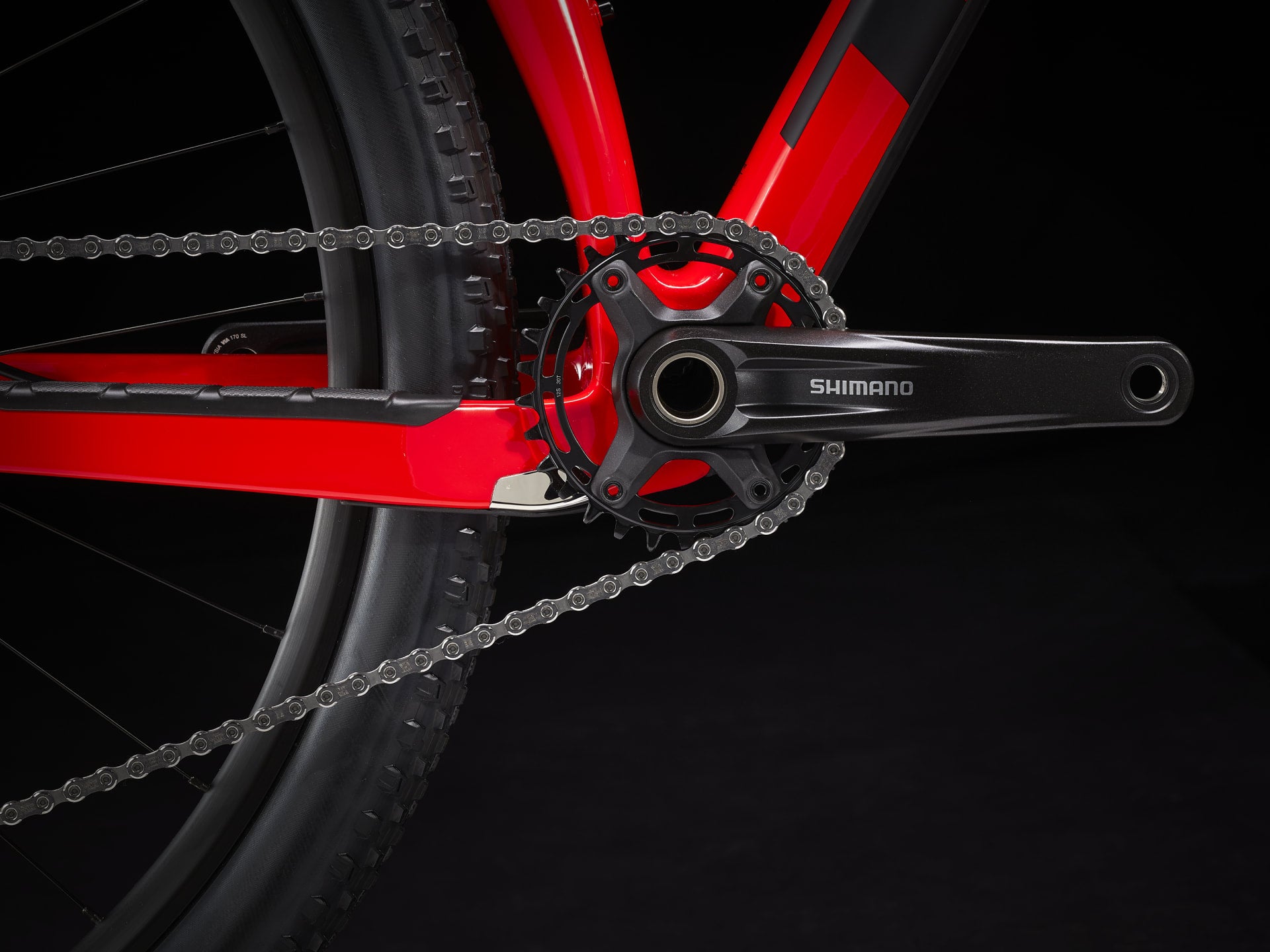

| *Crank |
Size: S, M Shimano MT511, 30T steel ring, 52mm chainline, 170mm length |
|
Size: ML, L, XL Shimano MT511, 30T steel ring, 52mm chainline, 175mm length |
|
| Bottom bracket | Shimano MT500, 92mm, PressFit |
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Max chainring size | 1x: 36T, min 30T |
Components
| *Saddle |
Size: S, M, ML, L, XL Bontrager Arvada, steel rails, 138mm width |
|---|---|
|
Size: S, M, ML, L, XL Bontrager Verse Comp, steel rails, 145mm width |
|
| *Seatpost |
Size: S Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
|
Size: M Bontrager alloy, 31.6mm, 12mm offset, 360mm length |
|
|
Size: ML, L, XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|
| *Handlebar |
Size: S, M, ML Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width |
|
Size: L, XL Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem |
Size: S, M Bontrager Rhythm Comp, 31.8mm, 0 degree, 60mm length |
|
Size: M, ML Bontrager Rhythm Comp, 31.8mm, 0 degree, 70mm length |
|
|
Size: L, XL Bontrager Rhythm Comp, 31.8mm, 0 degree, 80mm length |
|

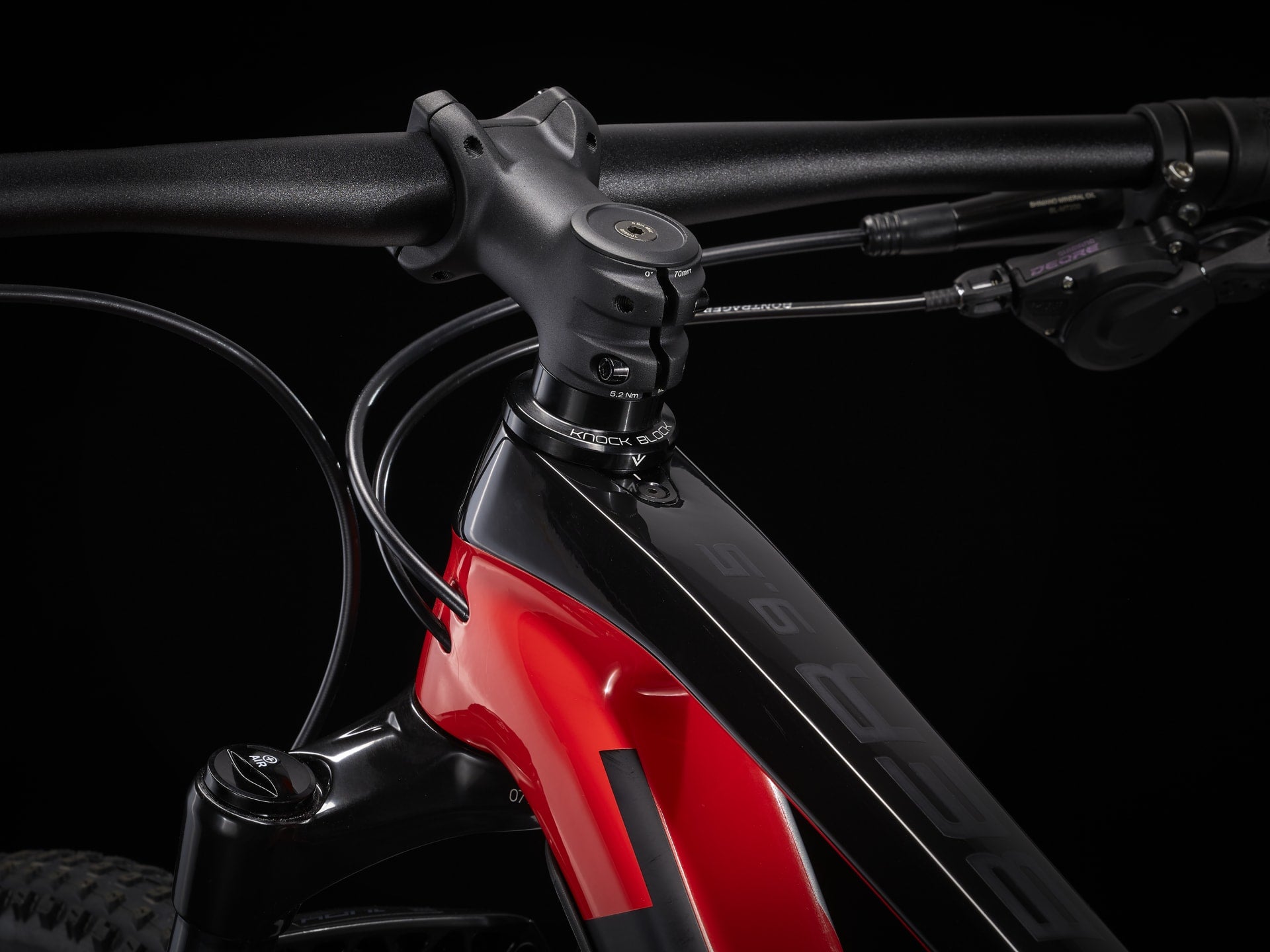

| Headset | Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom |

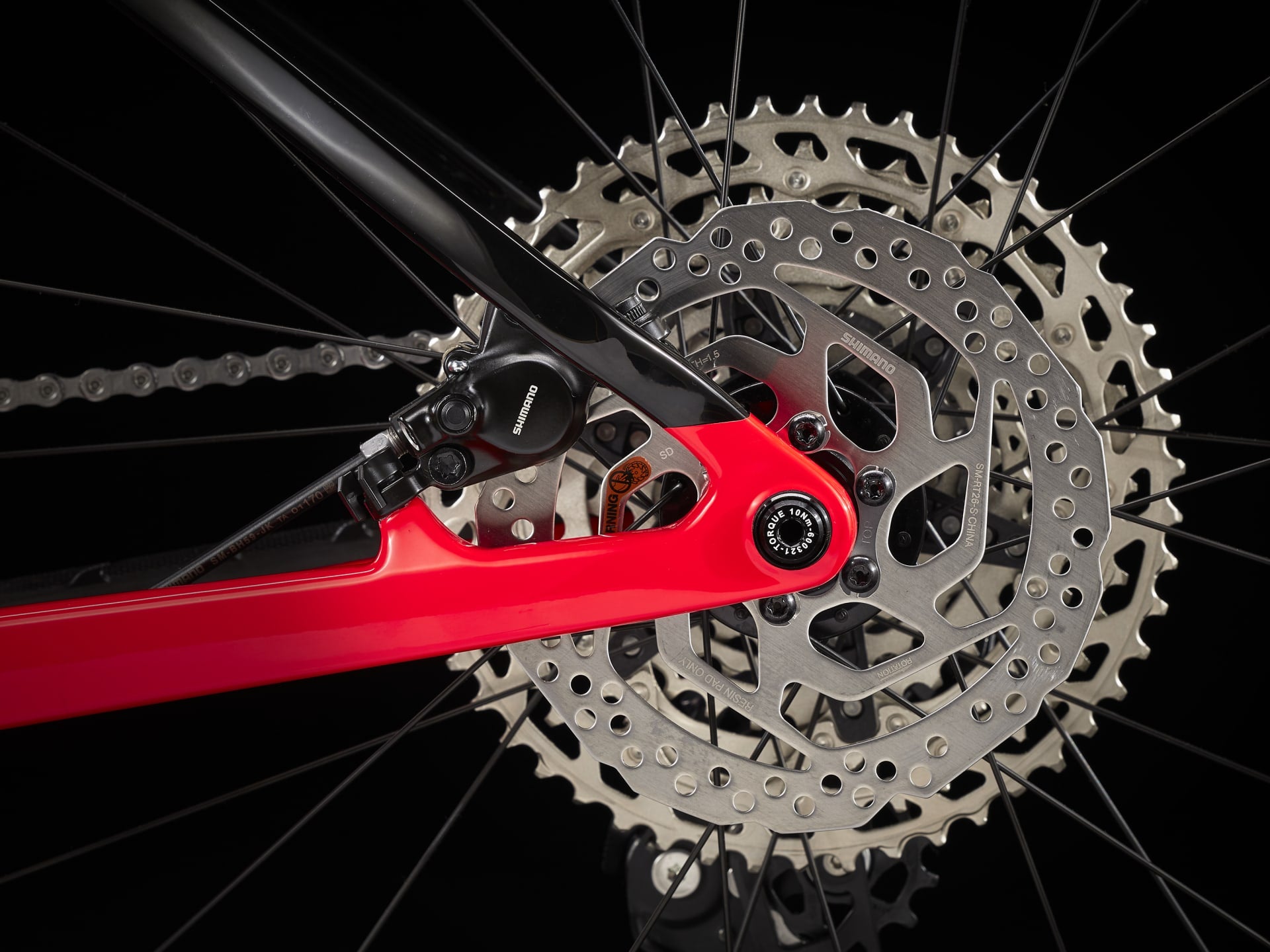

| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor |
Size: S, M, ML, L, XL Shimano RT26, 6-bolt,160mm |
|
Size: L, XL Shimano RT26, 6-bolt,180mm |
|
| Brake Set | Shimano MT200 hydraulic disc |
| Rotor size | Max brake rotor sizes - Frame: 180mm, Fork: see fork manufacturer |
Weight
| Weight | M - 12.36 kg / 27.25 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
SIZING
What is your inseam?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inseam measurement. Your inseam is very important to your final bike size so please measure carefully.
| Size | Rider Height | Inseam |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165 - 176 cm 5'5" - 5'9" |
79 - 83 cm 31" - 33" |
| ML |
173 - 180 cm 5'8" - 5'11" |
81 - 86 cm 32" - 34" |
| L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
| 2XL |
195 - 203 cm 6'5" - 6'8" |
91 - 97 cm 36" - 38" |
