PRODUCT DETAILS

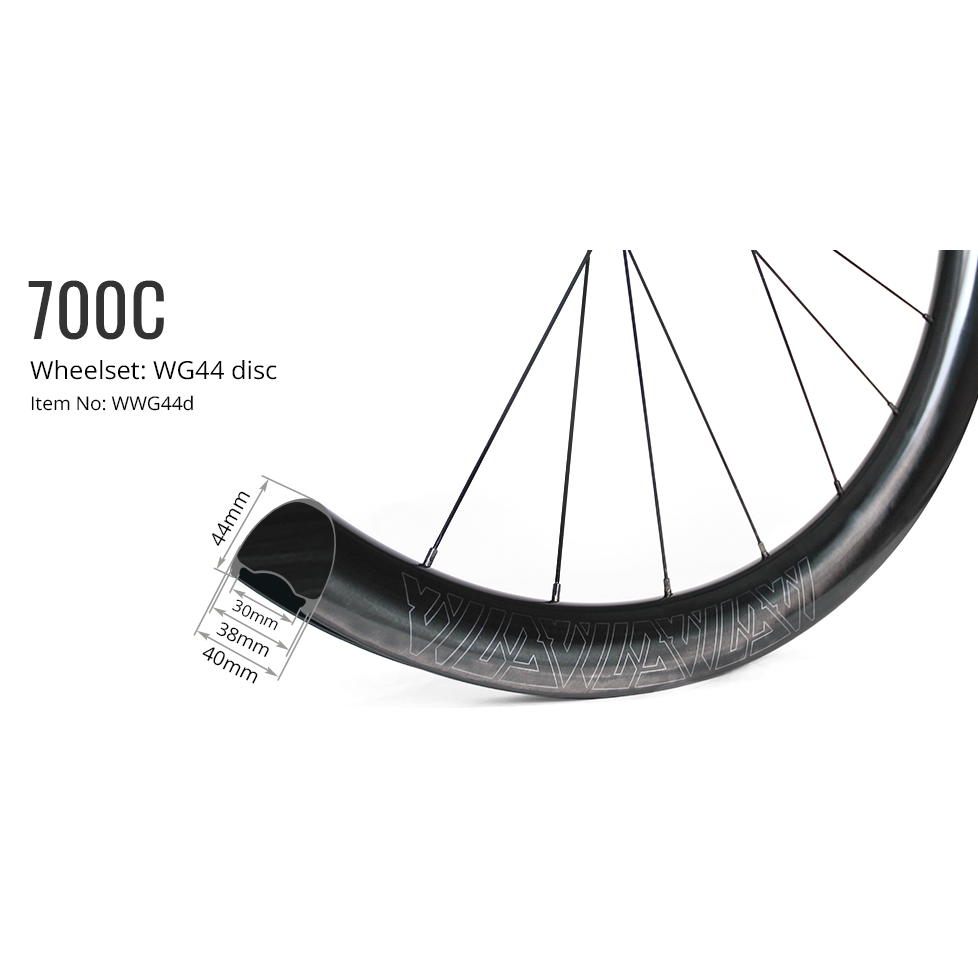

The WG44 is aero-optimized in width and depth dimensions, delivering a fast-rolling feel previously available only in narrow gravel rim and tire pairings. Featuring an inner width of 30mm and the widest part of the sidewall at 40mm, the WG44 reduces irregular air movements along the rim-tire interface. Air passes the tire and rim concurrently rather than being disrupted prematurely, making the best use of the 44mm aero depth. Even on wider, plusher tires you’ll benefit from this design.
The WG44 features a versatile 44mm aero depth. In exposed areas, the 44mm depth brings enough aero gains and responsiveness without losing control in crosswinds. Adventure anywhere on the WG44!
When configuring the wheelset, you will find a variety of hubs and spokes from brands like DT Swiss, Carbon-Ti, and Sapim to choose from. We only list some of the most popular options, so feel free to get in touch with us to special order. With over 10 years of wheel-building expertise, we calculate the spoke lengths, handlace the wheels to the desired pattern, tension and true the wheels, and do stress-reliving to get your product in a perfect state. You can install the wheels to start a new adventure immediately upon receiving it.
The rim/wheelset has passed our in-house R&D impact test of 105J(Standard)/90J(Flyweight).
Front Wheel
Rim: WG44d Standard Hybrid hook UD Paintless Disc 24H External Hole with Drain Holes
Hub: LIght Bicycle Pace-Hub Plus Black 12/100mm straight pull Center lock 24H TPI Ceramic
Spoke: Sapim CX Ray in Black Straight Pull
Nipple: Sapim Aluminum Black Universal External
ERD: 552.3mm (not including nipple head dimension)
Driver Side
Spoke Length: 278mm
Lacing Pattern: 2 cross
Non Driver Side
Spoke Length: 276mm
Lacing Pattern: 2 cross
Spoke Tension: 100-115kgf
Rear Wheel
Rim Model: WG44 Standard Hybrid Hook UD Paintless Disc 24H External Hole w/ Drain Holes
Hubs: LIght Bicycle Pace-Hub Plus Black 12/142mm straight pull Center lock 24H TPI Ceramic 36T Shimano Road 11s
Spokes: Sapim CX Ray in Black Straight Pull
Nipples: Sapim Aluminum Black Universal External
ERD: 552.3mm (not including nipple head dimension)
Dishing Pattern: Centered(Traditional)
Driver Side
Spoke Length: 274mm
Lacing Pattern: 2 cross
Spoke Tension: 120-135kgf
Non-Driver Side
Spoke Length: 278mm
Lacing Pattern: 2 cross
