PRODUCT DETAILS

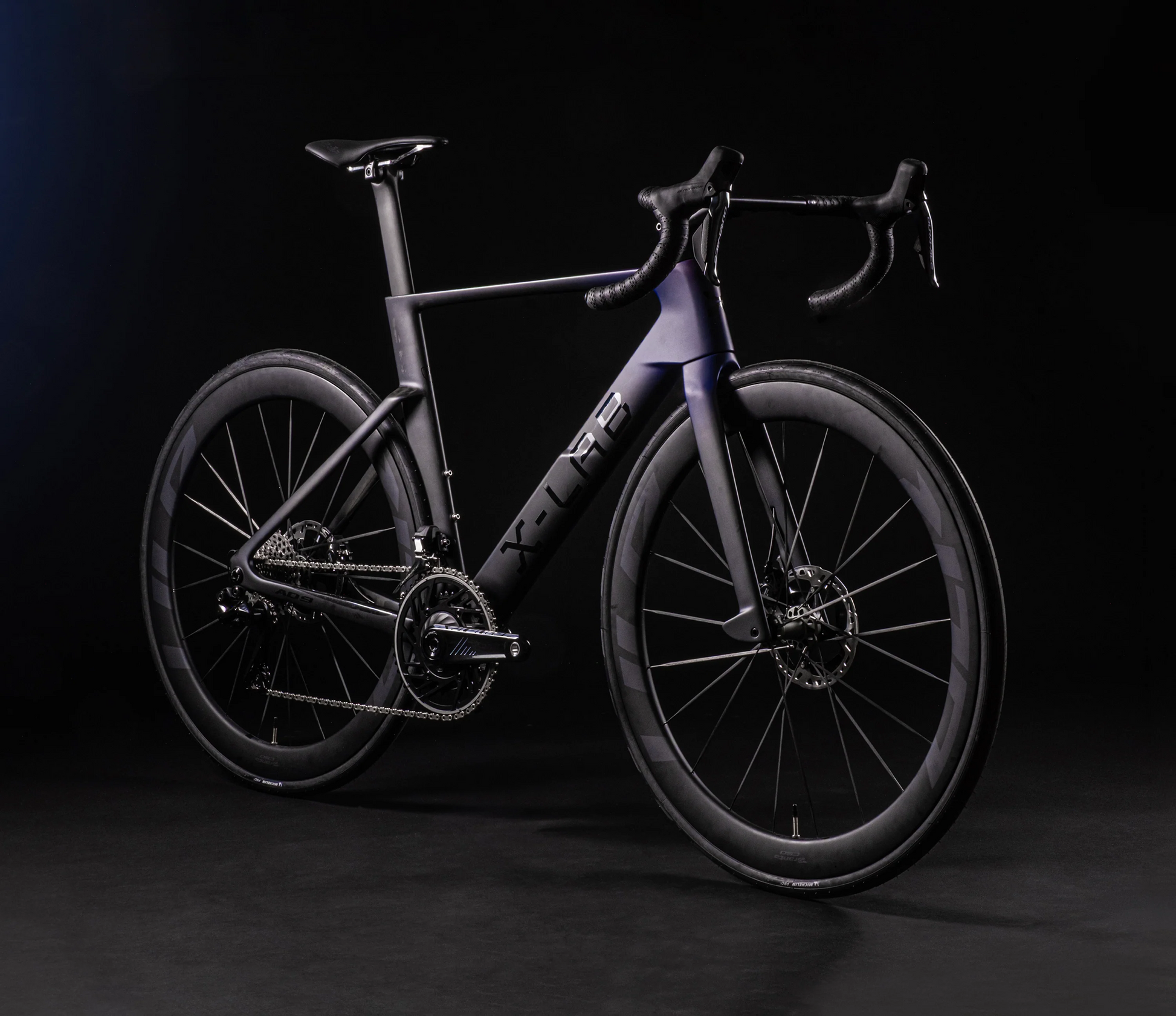

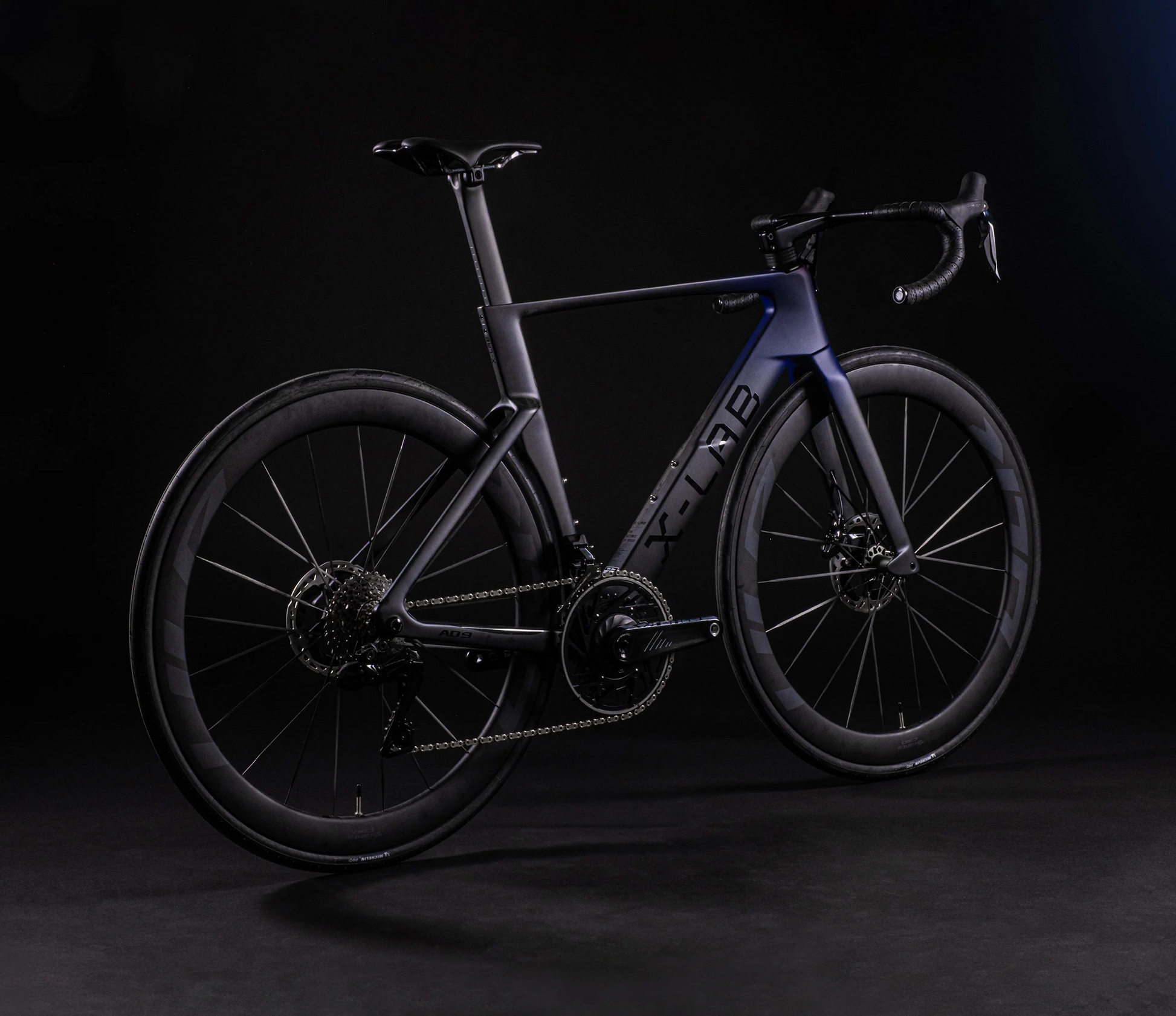

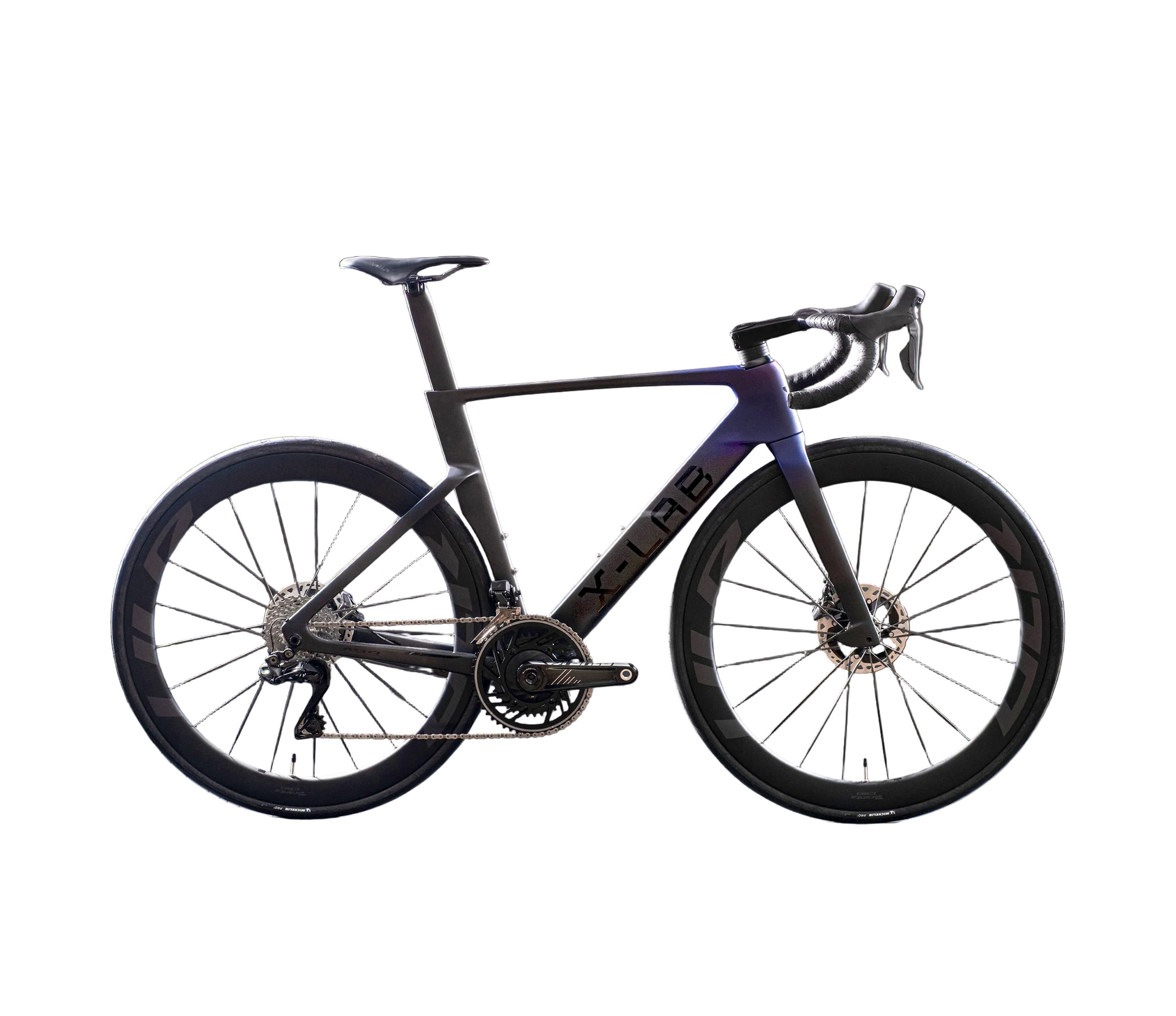

The X-LAB AD9 is a high-performance aero road bike engineered for elite-level racing. Featuring a lightweight carbon frame, advanced aerodynamic design, and premium components such as the Shimano Dura-Ace Di2 groupset and Vision Metron wheelset, it is built to maximize speed, efficiency, and responsiveness.
As the official race bike of the XDS-Astana WorldTour Team, the AD9 delivers proven WorldTour-level performance, combining cutting-edge technology and race-winning pedigree at a highly competitive price point.
WorldTour-Level Performance
The AD9 is XDS’s flagship aero road bike, developed for WorldTour-level competition and proven by the XDS Astana UCI WorldTour Team. It redefines what is possible in a top-tier, race-ready road bike, delivering uncompromising performance for the most demanding riders.
Advanced Aerodynamic Engineering

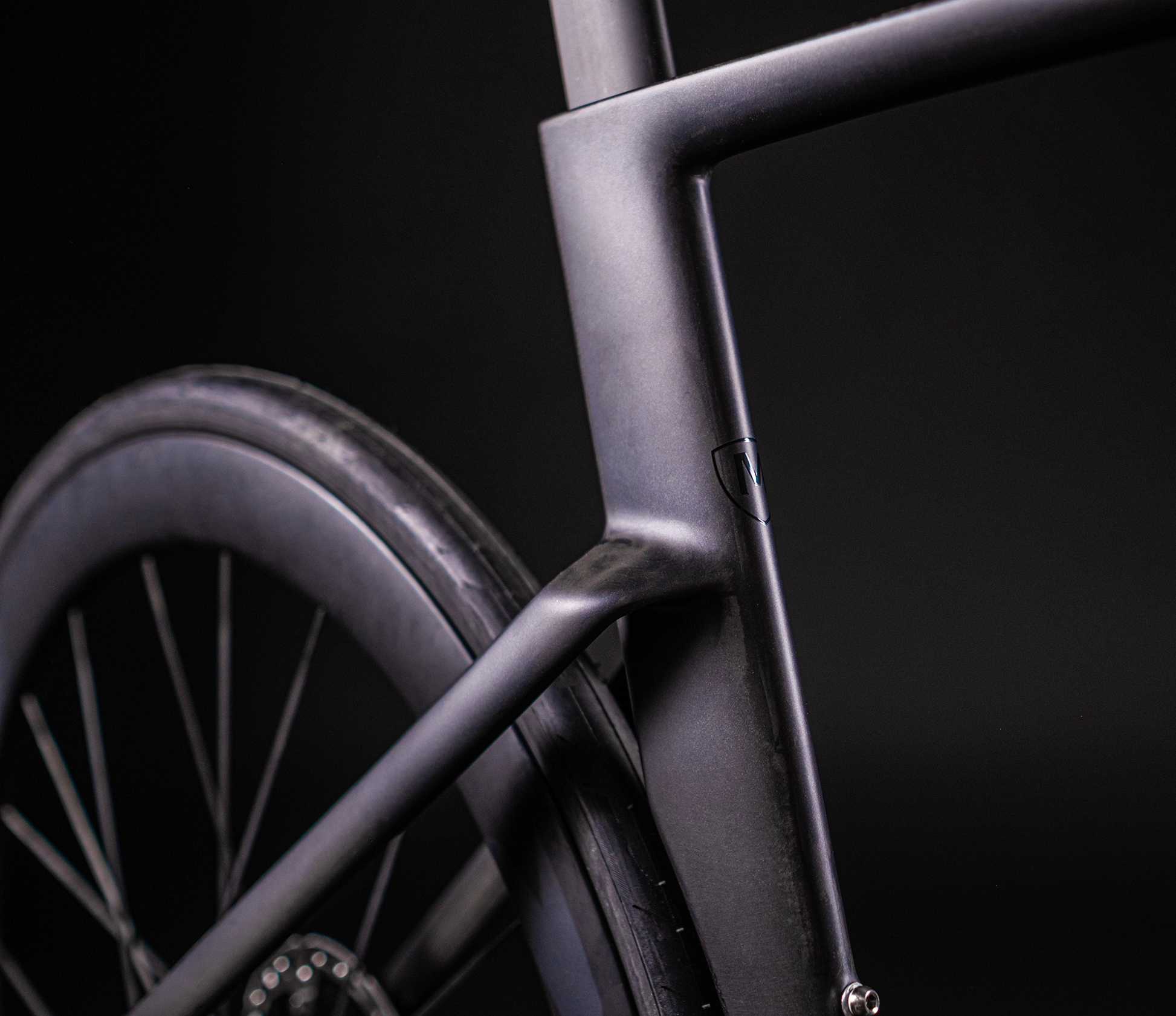

The AD9 frame is constructed using a precise blend of Toray T1100 carbon fiber, resulting in an impressively low frame weight of just 850 grams while maintaining professional-level stiffness. This advanced carbon layup provides exceptional power transfer, responsive handling, and aerodynamic efficiency, ensuring maximum performance in every racing situation.
Specification:
| Frame | XDS Carbon Frame | |
| Fork | XDS Carbon Fork, 100x12mm Thru-axle | |
| Stem |
Branta Carbon Integrated
|
|
| Handlebar | ||
| Seatpost | XDS Carbon Seatpost, Aero Shape | |
| Rear Derailleur | Shimano Dura-Ace RD-R9250 | |
| Front Derailleur | Shimano Dura-Ace FD-R9250 | |
| Shifter | Shimano Dura-Ace ST-R9270 | |
| Brakes | Shimano Dura-Ace BR-R9270 | |
| Cassette | Shimano Dura-Ace CS-R9200, 11-34T | |
| Crankset | Branta Carbon Powermeter Crankset, 52-36T, 29mm Aluminum Spindle | |
| BB | T47 29mm | |
| Rotors | Shimano SM-MT900, F:160mm R:160mm | |
| Chain | Shimano CN-M9100 | |
| Wheelset | Branta C50 ULR, Carbon Spokes | |
| Tires | Michelin Pro 5 700x28C | |
| Saddle | Prologo Nago R4 PAS, Carbon Rails(Team Replica) Selle Italia SLR Boost, Carbon Rails(Regular) |
|
| Weight | 6.82KG (Size L) | |
